Apache WSS4J 2.0.3 and 1.6.18 have been released. Both releases contain a number of fixes in relation to validating SAML tokens, as covered earlier. In addition, Apache WSS4J 2.0.3 has unified security error messages to prevent some attacks (see here for more information). Apache CXF 3.0.4 and 2.7.15 have also been released, both of which pick up the recent WSS4J releases.
↧
New Apache WSS4J and CXF releases
↧
Vulnerability testing of Apache CXF based web services
A number of automated tools can be used to conduct vulnerability or penetration testing of web services. In this article, we will take a look at using WS-Attacker to attack Apache CXF based web service endpoints. WS-Attacker is a useful tool based on SOAP-UI and developed by the Chair of Network and Data Security, Ruhr University Bochum (http://nds.rub.de/) and 3curity GmbH (http://3curity.de/). As an indication of how useful this tool is, it has uncovered a SOAP Action Spoofing vulnerability in older versions of CXF (see here). In this testing scenario, WS-Attacker 1.4-SNAPSHOT was used to test web services using Apache CXF 3.0.4. Apache CXF 3.0.4 is immune to all of the attacks described in this article (as can be seen from the "green" status in the screenshots).
1) SOAPAction Spoofing attacks
A SOAPAction spoofing attack is where the attacker will attempt to fool the service by "spoofing" the SOAPAction header to execute another operation. To test this I created a CXF based SOAP 1.1 endpoint which uses the action "soapAction="http://doubleit/DoubleIt"". I then loaded the WSDL into WS-Attacker, and selected the SOAPAction spoofing plugin, selecting a manual SOAP Action. Here is the result:
![]()
2) WS-Addressing Spoofing attacks
A WS-Addressing Spoofing attack involves sending an address in the WS-Addressing ReplyTo/To/FaultTo header that is not understood or known by the service, but to which the service redirects the message anyway. To guard against this attack in Apache CXF it is required to ensure that the WS-Addressing headers should be signed. As a sanity test, I added an endpoint where WS-Addressing is not configured, and the tests fail as expected:
![]()
3) XML Signature wrapping attacks
XML Signature allows you to sign various parts of a SOAP request, where the parts in question are referenced via an "Id". An attacker can leverage various "wrapping" based attacks to try to fool the resolution of a signed Element via its "Id". So for example, an attacker could modify the signed SOAP Body of a valid request (thus causing signature validation to fail), and put the original signed SOAP Body somewhere else in the request. If the signature validation code only picks up the Element that has been moved, then signature validation will pass even though the SOAP Body has been modified.
For this test I created a number of endpoints that are secured using WS-SecurityPolicy. I captured a successful signed request from a unit test and loaded it into WS-Attacker, and ran the Signature wrapping attack plugin. Here is the result:
![]()

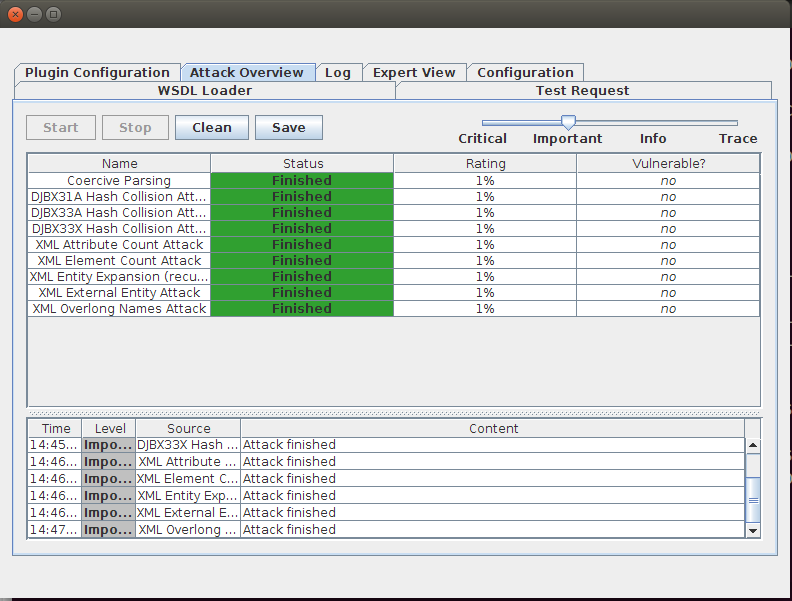

4) Denial of Service attacks
A Denial of Service attack is where an attacker attempts to crash or dramatically slow down a service by flooding it with data, or crafting a message in such a way as to cause parsing to crash or hang. An example might be to create an XML structure with a huge amount of Attributes or Elements, that would cause an out of memory error. WS-Attacker comes with a range of different attacks in this area. Here are the results of all of the DoS attacks against a plain CXF SOAP service (apart from the SOAP Array attack, as the service doesn't accept a SOAP array):
![]()
1) SOAPAction Spoofing attacks
A SOAPAction spoofing attack is where the attacker will attempt to fool the service by "spoofing" the SOAPAction header to execute another operation. To test this I created a CXF based SOAP 1.1 endpoint which uses the action "soapAction="http://doubleit/DoubleIt"". I then loaded the WSDL into WS-Attacker, and selected the SOAPAction spoofing plugin, selecting a manual SOAP Action. Here is the result:
2) WS-Addressing Spoofing attacks
A WS-Addressing Spoofing attack involves sending an address in the WS-Addressing ReplyTo/To/FaultTo header that is not understood or known by the service, but to which the service redirects the message anyway. To guard against this attack in Apache CXF it is required to ensure that the WS-Addressing headers should be signed. As a sanity test, I added an endpoint where WS-Addressing is not configured, and the tests fail as expected:
3) XML Signature wrapping attacks
XML Signature allows you to sign various parts of a SOAP request, where the parts in question are referenced via an "Id". An attacker can leverage various "wrapping" based attacks to try to fool the resolution of a signed Element via its "Id". So for example, an attacker could modify the signed SOAP Body of a valid request (thus causing signature validation to fail), and put the original signed SOAP Body somewhere else in the request. If the signature validation code only picks up the Element that has been moved, then signature validation will pass even though the SOAP Body has been modified.
For this test I created a number of endpoints that are secured using WS-SecurityPolicy. I captured a successful signed request from a unit test and loaded it into WS-Attacker, and ran the Signature wrapping attack plugin. Here is the result:
4) Denial of Service attacks
A Denial of Service attack is where an attacker attempts to crash or dramatically slow down a service by flooding it with data, or crafting a message in such a way as to cause parsing to crash or hang. An example might be to create an XML structure with a huge amount of Attributes or Elements, that would cause an out of memory error. WS-Attacker comes with a range of different attacks in this area. Here are the results of all of the DoS attacks against a plain CXF SOAP service (apart from the SOAP Array attack, as the service doesn't accept a SOAP array):
↧
↧
Apache Santuario - XML Security for Java 2.0.4 released
↧
Apache WSS4J 2.1.0 released
A new major release of Apache WSS4J, 2.1.0, has been released. The previous major release of almost a year ago, Apache WSS4J 2.0.0, had a lot of substantial changes (see the migration guide), such as a new set of maven modules, a new streaming implementation, changes to configuration tags, package changes for CallbackHandlers, etc. In contrast, WSS4J 2.1.0 has a much smaller set of changes, and users should be able to upgrade with very few changes (if at all). This post briefly covers the new features and migration issues for WSS4J 2.1.0.
Here are the new features of WSS4J 2.1.0:
Here are the migration issues in WSS4J 2.1.0:
Here are the new features of WSS4J 2.1.0:
- JDK7 minimum requirement: WSS4J 2.1.0 requires at least JDK7. The project source has also been updated to make use of some of the new features of JDK7, such as try-with-resources, etc.
- OpenSAML 3.x support: WSS4J 2.1.0 upgrades from OpenSAML 2.x to 3.x (currently 3.1.0). This is an important upgrade, as OpenSAML 2.x is not currently supported.
- Extensive code refactoring. A lot of work was done to make the retrieval of security results easier and faster.
Here are the migration issues in WSS4J 2.1.0:
- Due to the OpenSAML 3.x upgrade, you will need to make a small change in your SAML CallbackHandlers, if you are specifying the "Version". In WSS4J 2.0.x, you could specify the SAML Version by passing a "org.opensaml.common.SAMLVersion" instance through to the SAMLCallback.setSamlVersion(...) method. The "org.opensaml.common" package is removed in OpenSAML 3.x. Instead, a new Version bean is provided in WSS4J 2.1.0, that can be passed to the setSamlVersion method on SAMLCallback as before. See here for an example.
- The Xerces and xml-apis dependencies in the DOM code of Apache WSS4J 2.1.0 have been removed (previously they were at "provided" scope).
- If you have a custom Processor instance to process a token in the security header in some custom way, you must add the WSSecurityEngineResult that is generated by the processing, to the WSDocInfo Object via the "addResult" method. Otherwise, it will not be available when security results are retrieved and processed.
↧
Apache WSS4J 2.0.4 released
In addition to the new major release of Apache WSS4J (2.1.0), there is a new bug fix release available - Apache WSS4J 2.0.4. Here are the most important bugs that were fixed in this release:
- We now support the InclusiveC14N policy.
- We can enforce that a Timestamp has an "Expires" Element via configuration, if desired.
- There is a slight modification to how we cache signed Timestamps, to allow for the scenario of two Signatures in a security header that sign the same Timestamp, but with different keys.
- The policy layer now allows a SupportingToken policy to have more than one token.
- A bug has been fixed in the MerlinDevice crypto provider, which is designed to work with smartcards.
- A bug has been fixed in terms of using the correct JCE provider for encryption/decryption.
↧
↧
Apache CXF 3.1.0 released
Apache CXF 3.1.0 has been released and is available for download. The migration guide for CXF 3.1.x is available here. The main (non-security) features of CXF 3.1.0 are as follows:
- Java 6 is no longer supported.
- Jetty 9 is now supported. Support for Jetty 7 has been dropped.
- A new Metrics feature for collecting metrics about CXF services is available.
- A new Throttling feature is available for easily throttling CXF services.
- A new Logging feature is available that is more powerful than the existing logging functionality.
- CXF 3.1.0 picks up a new major release of WSS4J (2.1.0) and OpenSAML (3.1.0). Please see a recent post on WSS4J 2.1.0 for some migration notes if you are using WS-Security or SAML with CXF.
- The STS now signs issued SAML tokens by default using RSA-SHA256 (previously RSA-SHA1).
- Some security configuration tags have been renamed from "ws-security.*" to "security.*", as they are now shared with the XML Security JAX-RS module. The old tags will continue to work as before however without any change. See the Security Configuration page for more information.
- The SAML/XACML functionality previously available in the cxf-rt-security module is now in a new cxf-rt-security-saml module.
- A new Metadata service for SAML SSO is available. More on this in a future blog post.
- It is now possible to "plug in" custom security policy validators for WS-Security in CXF, if you want to change the default validation logic. See here for a test that shows how to do this.
↧
SAML SSO RP Metadata support in Apache CXF
Apache CXF provides comprehensive support for SSO using the SAML Web SSO profile for CXF-based JAX-RS services. In Apache CXF 3.1.0 (and 3.0.5), a new Metadata service is available to allow for the publishing of SAML SSO Metadata for a given service.
The MetadataService class is available on a "metadata" path and provides a single @GET method that returns the service metadata in XML format. It has the following properties which should be configured:
![]()
The MetadataService class is available on a "metadata" path and provides a single @GET method that returns the service metadata in XML format. It has the following properties which should be configured:
- String serviceAddress - The URL of the service
- String assertionConsumerServiceAddress - The URL of the RACS. If it is co-located with the service, then it can be the same URL as for the serviceAddress.
- String logoutServiceAddress - The URL of the logout service (if available).
- boolean addEndpointAddressToContext - Whether to add the full endpoint address to the values configured above. The default is false.
↧
Apache CXF Fediz 1.2.0 tutorial - overview
Apache CXF Fediz 1.2.0 has been released. Fediz is a subproject of the Apache CXF web services stack. It is an implementation of the WS-Federation Passive Requestor Profile for SSO that supports Claims Based Access Control. In laymans terms, Fediz allows you to implement Single Sign On (SSO) for your web application, by redirecting the client browser to an Identity Provider (IdP), where the client is authenticated and redirected back to the application. Fediz consists of a number of container-specific plugins (Tomcat, Jetty, Spring Security, Websphere, etc.) as well as an IdP which bundles the CXF Security Token Service (STS) to issue SAML Tokens.
This is an overview of a planned series of articles on the new features that are available in Fediz 1.2.0, which is a new major release of the project. Subsequent articles will go into more detail on the new features, which are as follows:
This is an overview of a planned series of articles on the new features that are available in Fediz 1.2.0, which is a new major release of the project. Subsequent articles will go into more detail on the new features, which are as follows:
- Dependency update to use CXF 3.0.x (3.0.4).
- A new container-independent CXF-based plugin is available.
- Logout Support has been added to the plugins and IdP
- A new REST API is available for configuring the IdP
- Support for authenticating to the IdP using Kerberos has been added
- Support for authenticating to the IdP using a client certificate has been added
- It is now possible to use the IdP as an identity broker with a SAML SSO IdP
- Metadata support has been added for the plugins and IdP
↧
Apache CXF Fediz 1.2.0 tutorial - part I
The previous blog entry gave an overview of the new features in Apache CXF Fediz 1.2.0. This post first focuses on setting up and running the IdP (Identity Provider) and the sample simpleWebapp in Apache Tomcat.
1) Deploying the 1.2.0 Fediz IdP in Apache Tomcat
Download Fediz 1.2.0 and extract it to a new directory (${fediz.home}). We will use a Apache Tomcat 7 container to host the Idp. To deploy the IdP to Tomcat:
For a more thorough test, enter the following in a web browser - you should be directed to the URL for the service application (404, as we have not yet configured it):
https://localhost:8443/fediz-idp/federation?wa=wsignin1.0&wreply=https%3A%2F%2Flocalhost%3A8443%2Ffedizhelloworld%2Fsecure%2Ffedservlet&wtrealm=urn%3Aorg%3Aapache%3Acxf%3Afediz%3Afedizhelloworld
2) Deploying the simpleWebapp in Apache Tomcat
To deploy the service to Tomcat:
To test the service navigate to:
1) Deploying the 1.2.0 Fediz IdP in Apache Tomcat
Download Fediz 1.2.0 and extract it to a new directory (${fediz.home}). We will use a Apache Tomcat 7 container to host the Idp. To deploy the IdP to Tomcat:
- Create a new directory: ${catalina.home}/lib/fediz
- Edit ${catalina.home}/conf/catalina.properties and append ',${catalina.home}/lib/fediz/*.jar' to the 'common.loader' property.
- Copy ${fediz.home}/plugins/tomcat/lib/* to ${catalina.home}/lib/fediz
- Copy ${fediz.home}/idp/war/* to ${catalina.home}/webapps
- Download and copy the hsqldb jar (e.g. hsqldb-1.8.0.10.jar) to ${catalina.home}/lib
- The keys that ship with Fediz 1.2.0 are 1024 bit DSA keys, which will not work with most modern browsers (this will be fixed for 1.2.1).
- So with 1.2.0 we need to download the keys from git, rather than use the keys in the distribution
- Download idp-ssl-key.jks and idp-ssl-trust.jks from here.
- Copy idp-ssl-key.jks and idp-ssl-trust.jks to ${catalina.home}.
- Copy both jks files as well to ${catalina.home}/webapps/fediz-idp/WEB-INF/classes/ (after Tomcat is started)
- Edit the TLS Connector in ${catalina.home}/conf/server.xml', e.g.: <Connector port="8443" protocol="org.apache.coyote.http11.Http11Protocol" maxThreads="150" SSLEnabled="true" scheme="https" secure="true" clientAuth="want" sslProtocol="TLS" keystoreFile="idp-ssl-key.jks" keystorePass="tompass" keyPass="tompass" truststoreFile="idp-ssl-trust.jks" truststorePass="ispass" />
For a more thorough test, enter the following in a web browser - you should be directed to the URL for the service application (404, as we have not yet configured it):
https://localhost:8443/fediz-idp/federation?wa=wsignin1.0&wreply=https%3A%2F%2Flocalhost%3A8443%2Ffedizhelloworld%2Fsecure%2Ffedservlet&wtrealm=urn%3Aorg%3Aapache%3Acxf%3Afediz%3Afedizhelloworld
2) Deploying the simpleWebapp in Apache Tomcat
To deploy the service to Tomcat:
- Copy ${fediz.home}/examples/samplekeys/rp-ssl-server.jks (rp-ssl-key.jks from Fediz 1.2.1) and ${fediz.home}/examples/samplekeys/ststrust.jks to ${catalina.home}.
- Copy ${fediz.home}/examples/simpleWebapp/src/main/config/fediz_config.xml to ${catalina.home}/conf/
- Edit ${catalina.home}/conf/fediz_config.xml and replace '9443' with '8443'.
- Do a "mvn clean install" in ${fediz.home}/examples/simpleWebapp
- Copy ${fediz.home}/examples/simpleWebapp/target/fedizhelloworld.war to ${catalina.home}/webapps.
To test the service navigate to:
- https://localhost:8443/fedizhelloworld/ (this is not secured)
- https://localhost:8443/fedizhelloworld/secure/fedservlet
↧
↧
Apache CXF Fediz 1.2.0 tutorial - part II
This is the second in a series of blog posts on the new features and changes in Apache CXF Fediz 1.2.0. The previous blog entry gave instructions about how to deploy the Fediz IdP and a sample service application in Apache Tomcat. This article describes how different client authentication methods are supported in the IdP, and how they can be selected by the service via the "wauth" parameter. Then we will extend the previous tutorial by showing how to authenticate to the IdP using a client certificate in the browser, as opposed to entering a username + password.
1) Supporting different client authentication methods in the IdP
The Apache Fediz IdP in 1.2.0 supports different client authentication methods by default using different URL paths, as follows:
<property name="authenticationURIs">
<util:map>
<entry key="default" value="federation/up" />
<entry key="http://docs.oasis-open.org/wsfed/authorization/200706/authntypes/SslAndKey" value="federation/krb" />
<entry key="http://docs.oasis-open.org/wsfed/authorization/200706/authntypes/default" value="federation/up" />
<entry key="http://docs.oasis-open.org/wsfed/authorization/200706/authntypes/Ssl" value="federation/clientcert" />
</util:map>
</property>
If a matching key is found for the wauth value, then the browser gets redirected to the associated URL. Therefore, a service provider can specify a value for "wauth" in the plugin configuration, and select the client authentication mode as a result. The values defined for "wauth" above are taken from the specification, but can be changed if required. The service provider can specify the value for "wauth" by using the "authenticationType" configuration tag, as documented here.
2) Client authentication using a certificate

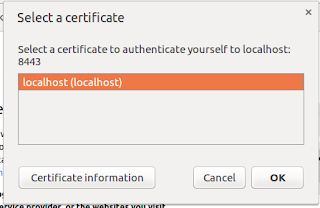

A new feature of Fediz 1.2.0 is the ability for a client to authenticate to the IdP using a certificate embedded in the browser.To see how this works in practice, please follow the steps given in the previous tutorial to set up the IdP and service web application in Apache Tomcat. To switch to use client certificate authentication, only one change is required in the service provider configuration:
![]()
Next, we need to tell the STS to trust the key used by the client (you can skip these steps if using Fediz 1.2.1):
![]()
1) Supporting different client authentication methods in the IdP
The Apache Fediz IdP in 1.2.0 supports different client authentication methods by default using different URL paths, as follows:
- /federation -> the main entry point
- /federation/up -> authentication using HTTP B/A
- /federation/krb -> authentication using Kerberos
- /federation/clientcert -> authentication using a client cert
<property name="authenticationURIs">
<util:map>
<entry key="default" value="federation/up" />
<entry key="http://docs.oasis-open.org/wsfed/authorization/200706/authntypes/SslAndKey" value="federation/krb" />
<entry key="http://docs.oasis-open.org/wsfed/authorization/200706/authntypes/default" value="federation/up" />
<entry key="http://docs.oasis-open.org/wsfed/authorization/200706/authntypes/Ssl" value="federation/clientcert" />
</util:map>
</property>
If a matching key is found for the wauth value, then the browser gets redirected to the associated URL. Therefore, a service provider can specify a value for "wauth" in the plugin configuration, and select the client authentication mode as a result. The values defined for "wauth" above are taken from the specification, but can be changed if required. The service provider can specify the value for "wauth" by using the "authenticationType" configuration tag, as documented here.
2) Client authentication using a certificate
A new feature of Fediz 1.2.0 is the ability for a client to authenticate to the IdP using a certificate embedded in the browser.To see how this works in practice, please follow the steps given in the previous tutorial to set up the IdP and service web application in Apache Tomcat. To switch to use client certificate authentication, only one change is required in the service provider configuration:
- Edit ${catalina.home}/conf/fediz_config.xml, and add the following under the "protocol" section: <authenticationType>http://docs.oasis-open.org/wsfed/authorization/200706/authntypes/Ssl</authenticationType>
- keytool -importkeystore -srckeystore idp-ssl-key.jks -destkeystore idp-ssl-key.p12 -srcstoretype JKS -deststoretype PKCS12 -srcstorepass tompass -deststorepass tompass -srcalias mytomidpkey -destalias mytomidpkey -srckeypass tompass -destkeypass tompass -noprompt
- First, export the certificate as follows: keytool -keystore idp-ssl-key.jks -storepass tompass -export -alias mytomidpkey -file MyTCIDP.cer
- Take the ststrust.jks + import the cert: keytool -import -trustcacerts -keystore ststrust.jks -storepass storepass -alias idpcert -file MyTCIDP.cer -noprompt
- Finally, copy the modified ststrust.jks into the STS: ${catalina.home}/webapps/fediz-idp-sts/WEB-INF/classes
- Edit ${catalina.home}/webapps/fediz-idp-sts/WEB-INF/userClaims.xml
- Add the following under "userClaimsREALMA": <entry key="CN=localhost" value-ref="REALMA_aliceClaims" />
- https://localhost:8443/fedizhelloworld/secure/fedservlet
↧
Using a JDBC JAAS LoginModule with Apache CXF
Last year I wrote a blog entry giving an overview of the different ways that you can use JAAS with Apache CXF for authenticating and authorizing web service calls. I also covered some different login modules and linked to samples for authenticating a Username + Password to LDAP, as well as Kerberos Tokens to a KDC. This article covers how to use JAAS with Apache CXF to authenticate a Username + Password to a database via JDBC.
The test-case is available here:
![]()
The configuration of the JDBCLoginModule is easy to follow. The "dbUrl" refers to the JDBC connection URL (in this case an in-memory Apache Derby instance). The table containing user data is "app.users", where the fields used for usernames and passwords are "name" and "password" respectively. Similarly, the table containing role data is "app.roles", where the fields used for usernames + roles are "name" and "role" respectively.
The tests use Apache Derby as an in-memory database. It is created in code as follows:
![]()
Then the following SQL file is read in, and each statement is executed using the statement Object above:
![]()
The test-case is available here:
- cxf-jdbc: This project contains a number of tests that show how an Apache CXF service endpoint can authenticate and authorize a client using JDBC.
The tests use Apache Derby as an in-memory database. It is created in code as follows:
Then the following SQL file is read in, and each statement is executed using the statement Object above:
↧
Integrating AWS Key Management Service with Apache CXF
Apache CXF supports a wide range of standards designed to help you secure a web service request, from WS-Security for SOAP requests, to XML Security and JWS/JWE for XML/JSON REST requests. All of these standards provide for using symmetric keys to encrypt requests, and then using a master key (typically a public key associated with an X.509 certificate) to encrypt the symmetric key, embedding this information somewhere in the request. The usual use-case is to generate random bytes for the symmetric key. But what if you wanted instead to manage the secret keys in some way? Or if your client did not have access to sufficient entropy to generate truly random bytes? In this article, we will look at how to use the AWS Key Management Service to perform this task for us, in the context of an encrypted SOAP request using WS-Security.
1) AWS Key Management Service
The AWS Key Management Service allows us to create master keys and data keys for users defined in the AWS Identity and Access Management service. Once we have created a user, and a corresponding master key for the user (which is only stored in AWS and cannot be exported), we can ask the Key Management Service to issue us a data key (using either AES 128 or 256), and an encrypted data key. The idea is that the data key is used to encrypt some data and is then disposed of. The encrypted data key is added to the request, where the recipient can ask the Key Management Service to decrypt the key, which can be then be used to decrypt the encrypted data in the request.
The first step is to register for Amazon AWS here. Once we have registered, we need to create a user in the Identity and Access Management service. Create a new user "alice", and make a note of the access key and secret access key associated with "alice". Next we need to write some code to obtain keys for "alice" (documentation). First we must create a client:
AWSCredentials creds = new BasicAWSCredentials(<access key id>, <secret key>);
AWSKMSClient kms = new AWSKMSClient(creds);
kms.setEndpoint("https://kms.eu-west-1.amazonaws.com");
Next we must create a customer master key for "alice":
String desc = "Secret encryption key";
CreateKeyRequest req = new CreateKeyRequest().withDescription(desc);
CreateKeyResult result = kms.createKey(req);
The CreateKeyResult object returned as part of the key creation process will contain a key Id, which we will need later.
2) Using AWS Key Management Service keys with WS-Security
As mentioned above, the typical process for WS-Security when encrypting a request, is to generate some random bytes to use as the symmetric encryption key, and then use a key wrap algorithm with another key (typically a public key) to encrypt the symmetric key. Instead, we will use the AWS Key Management Service to retrieve the symmetric key to encrypt the request. We will store the encrypted form of the symmetric key in the WS-Security EncryptedKey structure, which will reference the Customer Master Key via a "KeyName" pointing to the Key Id.
I have created a project that can be used to demonstrate this integration:
![]()
1) AWS Key Management Service
The AWS Key Management Service allows us to create master keys and data keys for users defined in the AWS Identity and Access Management service. Once we have created a user, and a corresponding master key for the user (which is only stored in AWS and cannot be exported), we can ask the Key Management Service to issue us a data key (using either AES 128 or 256), and an encrypted data key. The idea is that the data key is used to encrypt some data and is then disposed of. The encrypted data key is added to the request, where the recipient can ask the Key Management Service to decrypt the key, which can be then be used to decrypt the encrypted data in the request.
The first step is to register for Amazon AWS here. Once we have registered, we need to create a user in the Identity and Access Management service. Create a new user "alice", and make a note of the access key and secret access key associated with "alice". Next we need to write some code to obtain keys for "alice" (documentation). First we must create a client:
AWSCredentials creds = new BasicAWSCredentials(<access key id>, <secret key>);
AWSKMSClient kms = new AWSKMSClient(creds);
kms.setEndpoint("https://kms.eu-west-1.amazonaws.com");
Next we must create a customer master key for "alice":
String desc = "Secret encryption key";
CreateKeyRequest req = new CreateKeyRequest().withDescription(desc);
CreateKeyResult result = kms.createKey(req);
The CreateKeyResult object returned as part of the key creation process will contain a key Id, which we will need later.
2) Using AWS Key Management Service keys with WS-Security
As mentioned above, the typical process for WS-Security when encrypting a request, is to generate some random bytes to use as the symmetric encryption key, and then use a key wrap algorithm with another key (typically a public key) to encrypt the symmetric key. Instead, we will use the AWS Key Management Service to retrieve the symmetric key to encrypt the request. We will store the encrypted form of the symmetric key in the WS-Security EncryptedKey structure, which will reference the Customer Master Key via a "KeyName" pointing to the Key Id.
I have created a project that can be used to demonstrate this integration:
- cxf-amazon-kms: This project contains a number of tests that show how to use the AWS Key Management Service with Apache CXF.
↧
Using AWS KMS with Apache CXF to secure passwords
The previous tutorial showed how the AWS Key Management Service (KMS) can be used to generate symmetric encryption keys that can be used with WS-Security to encrypt and decrypt a service request using Apache CXF. It is also possible to use the KMS to secure keystore passwords for asymmetric encryption and signature, that are typically stored in properties files when using WS-Security with Apache CXF.
1) Encrypting passwords in a Crypto properties file
Apache CXF uses the WSS4J Crypto interface to get keys and certificates for asymmetric encryption/decryption and for signature creation/verification. Merlin is the standard implementation, based around two JDK keystores for key/cert retrieval, and trust verification. Typically, a Crypto implementation is loaded and configured via a Crypto properties file. For example:
![]()
However one issue with this style of configuration is that the keystore password is stored in plaintext in the file. Apache WSS4J 2.0.0 introduced the ability to store encrypted passwords in the crypto properties file instead. A PasswordEncryptor interface was defined to allow for the encryption/decryption of passwords, and a default implementation based on Jasypt was made available in the release. In this case, the master password used to decrypt the encrypted keystore password was retrieved from a CallbackHandler implementation.
2) Using KMS to encrypt keystore passwords
Instead of using the Jasypt PasswordEncryptor implementation provided by default in Apache WSS4J, it is possible to use instead the AWS KMS to decrypt encrypted keystore passwords stored in crypto properties files. I've updated the test-case introduced in the previous tutorial with an asymmetric encryption test-case, where a SOAP service invocation is encrypted using a WS-SecurityPolicy AsymmetricBinding policy.
The first step in running the test-case is to follow the previous tutorial in terms of registering for AWS, creating a user "alice" and a corresponding customer master key. One you have this, then run the "testEncryptedPasswords" test available here, which outputs the encrypted passwords for the client and service keystores ("cspass" and "sspass"). Copy the output + paste them into the clientEncKeystore.properties and serviceEncKeystore.properties in the "ENC()" tags. For example:
![]()
The client and service configure a custom PasswordEncryptor implementation designed to decrypt the encrypted keystore password using KMS. The KMSPasswordEncryptor is spring-loaded in the client and service configuration, and must be updated with the access key id, secret key, master key id, etc. as defined earlier. Of course this means that the secret key is in plaintext in a spring configuration file in this example. However, it could be obtained via a system property or some other means, and is more secure than storing a plaintext keystore password in a properties file. Once the KMSPasswordEncryptor is properly configured, then the AsymmetricTest can be run, and you will see the secured service request and response in the console window.
1) Encrypting passwords in a Crypto properties file
Apache CXF uses the WSS4J Crypto interface to get keys and certificates for asymmetric encryption/decryption and for signature creation/verification. Merlin is the standard implementation, based around two JDK keystores for key/cert retrieval, and trust verification. Typically, a Crypto implementation is loaded and configured via a Crypto properties file. For example:
However one issue with this style of configuration is that the keystore password is stored in plaintext in the file. Apache WSS4J 2.0.0 introduced the ability to store encrypted passwords in the crypto properties file instead. A PasswordEncryptor interface was defined to allow for the encryption/decryption of passwords, and a default implementation based on Jasypt was made available in the release. In this case, the master password used to decrypt the encrypted keystore password was retrieved from a CallbackHandler implementation.
2) Using KMS to encrypt keystore passwords
Instead of using the Jasypt PasswordEncryptor implementation provided by default in Apache WSS4J, it is possible to use instead the AWS KMS to decrypt encrypted keystore passwords stored in crypto properties files. I've updated the test-case introduced in the previous tutorial with an asymmetric encryption test-case, where a SOAP service invocation is encrypted using a WS-SecurityPolicy AsymmetricBinding policy.
The first step in running the test-case is to follow the previous tutorial in terms of registering for AWS, creating a user "alice" and a corresponding customer master key. One you have this, then run the "testEncryptedPasswords" test available here, which outputs the encrypted passwords for the client and service keystores ("cspass" and "sspass"). Copy the output + paste them into the clientEncKeystore.properties and serviceEncKeystore.properties in the "ENC()" tags. For example:
The client and service configure a custom PasswordEncryptor implementation designed to decrypt the encrypted keystore password using KMS. The KMSPasswordEncryptor is spring-loaded in the client and service configuration, and must be updated with the access key id, secret key, master key id, etc. as defined earlier. Of course this means that the secret key is in plaintext in a spring configuration file in this example. However, it could be obtained via a system property or some other means, and is more secure than storing a plaintext keystore password in a properties file. Once the KMSPasswordEncryptor is properly configured, then the AsymmetricTest can be run, and you will see the secured service request and response in the console window.
↧
↧
A new Crypto implementation in Apache WSS4J
Apache WSS4J uses the Crypto interface to get keys and certificates for asymmetric encryption/decryption and signature creation/verification. In addition, it also takes care of verifying trust in an X.509 certificate used to sign some portion of the message. WSS4J currently ships with three Crypto implementations:
![]()
- Merlin: The standard implementation, based around two JDK keystores for key/cert retrieval, and trust verification.
- CertificateStore: Holds an array of X509 Certificates. Can only be used for encryption and signature verification.
- MerlinDevice: Based on Merlin, allows loading of keystores using a null InputStream - for example on a smart-card device.
- MerlinAKI: A new Merlin-based Crypto implementation that searches the truststore for the issuing certificate using the AuthorityKeyIdentifier extension bytes of the signing certificate, as opposed to the issuer DN.
- Is the signing cert contained in the keystore/truststore? If yes, then trust verification succeeds. This can be combined with using regular expressions on the Subject DN as well.
- If not, then get the issuing cert by reading the Issuer DN from the signing cert. Then search for this cert in the keystore/truststore.
- If the issuer cert is found, then form a cert path containing the signing cert, the issuing cert and any subsequent issuing cert of that cert. Then validate the cert path.
↧
An STS JAAS LoginModule for Apache CXF
Last year I blogged about how to use JAAS with Apache CXF, and the different LoginModules that were available. Recently, I wrote another article about using a JDBC LoginModule with CXF. This article will cover a relatively new JAAS LoginModule added to CXF for the 3.0.3 release. It allows a service to dispatch a Username and Password to a STS (Security Token Service) instance for authentication via the WS-Trust protocol, and also to retrieve the user's roles by extracting them from a SAML token returned by the STS.
1) The STS JAAS LoginModule
The new STS JAAS LoginModule is available in the CXF WS-Security runtime module. It takes a Username and Password from the Callbackhandler passed to the LoginModule, and uses them to create a WS-Security UsernameToken structure. What happens then depends on a configuration setting in the LoginModule.
If the "require.roles" property is set, then the UsernameToken is added to a WS-Trust "Issue" request to the STS, and a "TokenType" attribute is sent in the request (defaults to the standard "SAML2" URI, but can be configured). The client also adds a WS-Trust "Claim" to the request that tells the STS to add the role of the authenticated end user to the request. How the token is added to the WS-Trust request depends on whether the "disable.on.behalf.of" property is set or not. By default, the token is added as an "OnBehalfOf" token in the WS-Trust request. However, if "disable.on.behalf.of" is set to "true", then the credentials are used according to the WS-SecurityPolicy of the STS endpoint. For example, if the policy requires a UsernameToken, then the credentials are added to the security header of the WS-Trust request. If the "require.roles" property is not set, the the UsernameToken is added to a WS-Trust "Validate" request.
The STS validates the received UsernameToken credentials supplied by the end user, and then either creates a token (if the Issue binding was used), or just returns a simple response telling the client whether the validation was successful or not. In the former use-case, the token that is returned is cached meaning that the end user does not have to re-authenticate until the token expires from the cache.
The LoginModule has the following configuration properties:
Here is an example of the new JAAS LoginModule configuration:
![]()
2) A testcase for the new LoginModule
Using an STS via WS-Trust for authentication and authorization can be quite difficult to set up and understand, but the new LoginModule makes it easy. I created a testcase + uploaded it to github:
http://localhost:8080/cxf-double-it/doubleit/services/100
Use credentials "alice/security" when prompted. The STS JAAS LoginModule takes the username and password, and dispatches them to the STS for validation.
1) The STS JAAS LoginModule
The new STS JAAS LoginModule is available in the CXF WS-Security runtime module. It takes a Username and Password from the Callbackhandler passed to the LoginModule, and uses them to create a WS-Security UsernameToken structure. What happens then depends on a configuration setting in the LoginModule.
If the "require.roles" property is set, then the UsernameToken is added to a WS-Trust "Issue" request to the STS, and a "TokenType" attribute is sent in the request (defaults to the standard "SAML2" URI, but can be configured). The client also adds a WS-Trust "Claim" to the request that tells the STS to add the role of the authenticated end user to the request. How the token is added to the WS-Trust request depends on whether the "disable.on.behalf.of" property is set or not. By default, the token is added as an "OnBehalfOf" token in the WS-Trust request. However, if "disable.on.behalf.of" is set to "true", then the credentials are used according to the WS-SecurityPolicy of the STS endpoint. For example, if the policy requires a UsernameToken, then the credentials are added to the security header of the WS-Trust request. If the "require.roles" property is not set, the the UsernameToken is added to a WS-Trust "Validate" request.
The STS validates the received UsernameToken credentials supplied by the end user, and then either creates a token (if the Issue binding was used), or just returns a simple response telling the client whether the validation was successful or not. In the former use-case, the token that is returned is cached meaning that the end user does not have to re-authenticate until the token expires from the cache.
The LoginModule has the following configuration properties:
- require.roles - If this is defined, then the WS-Trust Issue binding is used, passing the value specified for the "token.type" property as the TokenType, and the "key.type" property for the KeyType. It also adds a Claim to the request for the default "role" URI.
- disable.on.behalf.of - Whether to disable passing Username + Password credentials via "OnBehalfOf".
- disable.caching - Whether to disable caching of validated credentials. Default is "false". Only applies when "require.roles" is defined.
- wsdl.location - The location of the WSDL of the STS
- service.name - The service QName of the STS
- endpoint.name - The endpoint QName of the STS
- key.size - The key size to use (if requesting a SymmetricKey KeyType). Defaults to 256.
- key.type - The KeyType to use. Defaults to the standard "Bearer" URI.
- token.type - The TokenType to use. Defaults to the standard "SAML2" URI.
- ws.trust.namespace - The WS-Trust namespace to use. Defaults to the standard WS-Trust 1.3 namespace.
Here is an example of the new JAAS LoginModule configuration:
2) A testcase for the new LoginModule
Using an STS via WS-Trust for authentication and authorization can be quite difficult to set up and understand, but the new LoginModule makes it easy. I created a testcase + uploaded it to github:
- cxf-jaxrs-jaas-sts: This project demonstrates how to use the new STS JAAS LoginModule in CXF to authenticate and authorize a user. It contains a "double-it" module which contains a "double-it" JAX-RS service. It is secured with JAAS at the container level, and requires a role of "boss" to access the service. The "sts" module contains a Apache CXF STS web application which can authenticate users and issue SAML tokens with embedded roles.
- cp double-it/target/cxf-double-it.war ${catalina.home}/webapps
- cp sts/target/cxf-sts.war ${catalina.home}/webapps
- cp double-it/src/main/resources/jaas.conf ${catalina.home}/conf
- export JAVA_OPTS=-Djava.security.auth.login.config=${catalina.home}/conf/jaas.conf
http://localhost:8080/cxf-double-it/doubleit/services/100
Use credentials "alice/security" when prompted. The STS JAAS LoginModule takes the username and password, and dispatches them to the STS for validation.
↧
Using SSH/SCP/SFTP with Apache Camel
Apache Camel contains a number of components to make it easy to work with SSH/SCP/SFTP. I've created a new camel-ssh testcase in github to illustrate how to use these various components, continuing on from previous posts describing the security capabilities of Apache Camel:
- SSHTest: This test-case shows how to use the Apache Camel SSH component. The test fires up an Apache MINA SSHD server, which has been configured to allow authenticated users to execute arbitrary commands (ok not very safe...). Some files that contain unix commands are read in via a Camel route, executed using the SSH component, and the results are stored in target/ssh_results.
- SCPTest: This test-case shows how to use the Apache Camel JSCH component (which supports SCP using JSCH). An Apache MINA SSHD server is configured that allows SCP. Some XML files are read in via a Camel route, and copied using SCP to a target directory on the server (which maps to target/storage for the purposes of this test).
- SFTPTest: This test-case shows how to use the Apache Camel FTP component. An Apache MINA SSHD server is configured that allows SFTP. Some XML files are read in via a Camel route, and copied using SFTP to a target directory on the server (target/storage_sftp).
↧
Integrating Apache CXF with Apache Camel
Apache Camel provides support for integrating Apache CXF endpoints via the camel-cxf component. A common example of the benefits of using Apache Camel with webservices is when a proxy service is required to translate some client request into a format that is capable of being processed by some backend service. Apache Camel ships with an example where a backend service consumes SOAP over JMS, and a proxy service translates a SOAP over HTTP client request into SOAP over JMS. In this post, we will show an example of how to use this proxy pattern to secure a client invocation to a backend service via a proxy, when the backend service and proxy have different security requirements.
The test scenario is as follows. The backend service is an Apache CXF-based JAX-WS "double-it" service that can only be called by trusted clients. However, we don't want to give the backend service the responsibility to authenticate clients. A CXF-based proxy service will be responsible for authenticating clients, and then routing the authenticated requests to the backend service via Apache Camel. The backend service is secured via TLS with client authentication, meaning that we have direct trust between the proxy service and the backend service. Clients must authenticate to the proxy service via a WS-Security UsernameToken over TLS.
The test-case can be downloaded and run here:
![]()

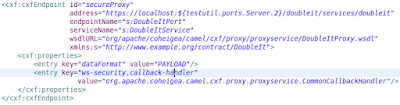

The CallbackHandler supplies the password to authenticate client passwords. The Camel route is defined as:
![]()
The headerFilterStrategy reference is to a CxfHeaderFilterStrategy bean which instructs Camel to drop the message headers (we don't need the security header beyond the proxy, as the proxy is responsible for authenticating the client). Messages are routed to the "doubleItService", which is defined as follows:
![]()
The test scenario is as follows. The backend service is an Apache CXF-based JAX-WS "double-it" service that can only be called by trusted clients. However, we don't want to give the backend service the responsibility to authenticate clients. A CXF-based proxy service will be responsible for authenticating clients, and then routing the authenticated requests to the backend service via Apache Camel. The backend service is secured via TLS with client authentication, meaning that we have direct trust between the proxy service and the backend service. Clients must authenticate to the proxy service via a WS-Security UsernameToken over TLS.
The test-case can be downloaded and run here:
- camel-cxf-proxy-demo: A secure proxy test using Apache CXF and Apache Camel.
↧
↧
Securing Apache CXF with Apache Camel
The previous post I wrote about how to integrate Apache CXF with Apache Camel. The basic test scenario involved using an Apache CXF proxy service to authenticate clients, and Apache Camel to route the authenticated requests to a backend service, which had different security requirements to the proxy. In this post, we will look at a slightly different scenario, where the duty of authenticating the clients shifts from the proxy service to Apache Camel itself. In addition, we will look at how to authorize the clients via different Apache Camel components.
For a full description of the test scenario see the previous post. The Apache CXF based proxy service receives a WS-Security UsernameToken, which is used to authenticate the client. In the previous scenario, this was done at the proxy by supplying a CallbackHandler instance to verify the given username and password. However, this time we will just configure the proxy to pass the received credentials through to the route instead of authenticating them. This can be done by setting the JAX-WS property "ws-security.validate.token" to "false":
![]()
So now it is up to the Camel route to authenticate and authorize the user credentials. Here are two possibilities using Apache Shiro and Spring Security.
1) Apache Shiro
I've covered previously how to use Apache Shiro to authenticate and authorize web service invocations using Apache CXF. Apache Camel ships with a camel-shiro component which allows you to authenticate and authorize Camel routes. The test-case can be downloaded and run here:
![]()
The Camel route is as follows:
![]()
Note that the shiroHeaderProcessor bean processes the result from the proxy before applying the Shiro policy. This processor retrieves the client credentials (which are stored as a JAAS Subject in a header on the exchange) and extracts the username and password, storing them in special headers that are used by the Shiro component in Camel to get the username and password for authentication.
The authorization use-case uses the same route, however the ShiroSecurityPolicy bean enforces that the user must have a role of "boss" to invoke on the backend service:
![]()
2) Spring Security
I've also covered previously how to use Spring Security to authenticate and authorize web service invocations using Apache CXF. Apache Camel ships with a camel-spring-security component which allows you to authenticate and authorize Camel routes. The test-case can be downloaded and run here:
![]()
The Camel route is exactly the same as in the Shiro example above, except that a different processor implementation is used. The SpringSecurityHeaderProcessor bean used in the tests translates the user credentials into a Spring Security UsernamePasswordAuthenticationToken principal, which is added to the JAAS Subject stored under the Exchange.AUTHENTICATION header. This principal is then used by the Spring Security component to authenticate the request.
To authorize the request, a different authorizationPolicy configuration is required:
![]()
For a full description of the test scenario see the previous post. The Apache CXF based proxy service receives a WS-Security UsernameToken, which is used to authenticate the client. In the previous scenario, this was done at the proxy by supplying a CallbackHandler instance to verify the given username and password. However, this time we will just configure the proxy to pass the received credentials through to the route instead of authenticating them. This can be done by setting the JAX-WS property "ws-security.validate.token" to "false":
1) Apache Shiro
I've covered previously how to use Apache Shiro to authenticate and authorize web service invocations using Apache CXF. Apache Camel ships with a camel-shiro component which allows you to authenticate and authorize Camel routes. The test-case can be downloaded and run here:
- camel-cxf-proxy-shiro-demo: Some authentication and authorization tests for an Apache CXF proxy service using the Apache Camel Shiro component.
Note that the shiroHeaderProcessor bean processes the result from the proxy before applying the Shiro policy. This processor retrieves the client credentials (which are stored as a JAAS Subject in a header on the exchange) and extracts the username and password, storing them in special headers that are used by the Shiro component in Camel to get the username and password for authentication.
The authorization use-case uses the same route, however the ShiroSecurityPolicy bean enforces that the user must have a role of "boss" to invoke on the backend service:
2) Spring Security
I've also covered previously how to use Spring Security to authenticate and authorize web service invocations using Apache CXF. Apache Camel ships with a camel-spring-security component which allows you to authenticate and authorize Camel routes. The test-case can be downloaded and run here:
- camel-cxf-proxy-spring-security-demo: Some authentication and authorization tests for an Apache CXF proxy service using the Apache Camel Spring Security component.
To authorize the request, a different authorizationPolicy configuration is required:
↧
Apache CXF Fediz 1.2.0 tutorial - part III
This is the third in a series of blog posts on the new features and changes in Apache CXF Fediz 1.2.0. The previous blog entry described how different client authentication mechanisms are supported in the IdP, and how to configure client authentication via an X.509 certificate, a new feature in Fediz 1.2.0. Another new authentication mechanism in Fediz 1.2.0 is the ability to authenticate to the IdP using Kerberos, which we will cover in this article.
1) Kerberos client authentication in the IdP
Recall that the Apache Fediz IdP in 1.2.0 supports different client authentication methods by default using different URL paths. In particular for Kerberos, the URL path is:
2) Authenticating Kerberos tokens in the IdP
The IdP supports two different ways of validating Kerberos tokens:
set the "requireDelegation" property to "true", and configure the kerberosTokenValidator property to validate the received Kerberos token:
![]()
1) Kerberos client authentication in the IdP
Recall that the Apache Fediz IdP in 1.2.0 supports different client authentication methods by default using different URL paths. In particular for Kerberos, the URL path is:
- /federation/krb -> authentication using Kerberos
- http://docs.oasis-open.org/wsfed/authorization/200706/authntypes/SslAndKey
2) Authenticating Kerberos tokens in the IdP
The IdP supports two different ways of validating Kerberos tokens:
- Passthrough Authentication. Here we do not authenticate the Kerberos token at all in the IdP, but pass it through to the STS for authentication. This is similar to what is done for the Username/Password authentication case. The default security binding of the STS for this scenario requires a KerberosToken Supporting Token. This is the default way of authenticating Kerberos tokens in the IdP.
- Delegation. If delegation is enabled in the IdP, then the received token is validated locally in the IdP. The delegated credential is then used to get a new Kerberos Token to authenticate the STS call "on behalf of" the original user.
set the "requireDelegation" property to "true", and configure the kerberosTokenValidator property to validate the received Kerberos token:
↧
Apache CXF Fediz 1.2.0 tutorial - part IV
This is the fourth in a series of blog posts on the new features and changes in Apache CXF Fediz 1.2.0. The last two articles focused on how clients can authenticate to the IdP in Fediz 1.2.0 using Kerberos and TLS client authentication. In this post we will divert our attention from the IdP for the time being, and look at a new container-independent Relying Party (RP) plugin available in Fediz 1.2.0 based on Apache CXF.
1) RP plugins in Fediz
Apache Fediz ships with a number of RP plugins to secure your web application. These plugins are container-dependent, meaning that if your web app is deployed in say Apache Tomcat, you need to use the Tomcat plugin in Fediz. The following plugins were available prior to Fediz 1.2.0:
The CXF plugin referred to here was not a full WS-Federation RP plugin as in the other modules. Instead, it consisted of a mechanism that allows the SSO (SAML) token retrieved as part of the WS-Federation process to be used by CXF client code, if the web application needed to obtain another token "on behalf of" the other token when making some subsequent web services call.
2) CXF RP plugin in Fediz 1.2.0

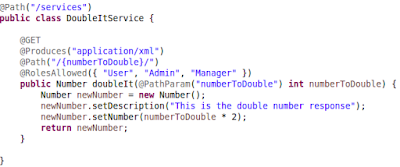

In Fediz 1.2.0, the CXF plugin mentioned above now contains a fully fledged WS-Federation RP implementation that can be used to secure a JAX-RS service, rather than using one of the container dependent plugins. Lets see how this works using a test-case:
![]()
This is enforced via CXF's SecureAnnotationsInterceptor. Finally WS-Federation is enabled for the service via the JAX-RS Provider called the FedizRedirectBindingFilter, available in the CXF plugin in Fediz. This takes a "configFile" parameter, which is a link to the standard Fediz plugin configuration file:
![]()
It's as easy as this to secure your CXF JAX-RS service using WS-Federation! The remaining module in the test above deploys the IdP + STS from Fediz in Apache Tomcat. It then takes the "double-it" war above and also deployed it in Tomcat.
Finally, it uses Htmlunit to make an invocation on the service, and checks that access is granted to the service. Alternatively, you can comment the @Ignore annotation of the "testInBrowser" method, and copy the printed out URL into a browser to test the service directly (user credentials: "alice/ecila").
1) RP plugins in Fediz
Apache Fediz ships with a number of RP plugins to secure your web application. These plugins are container-dependent, meaning that if your web app is deployed in say Apache Tomcat, you need to use the Tomcat plugin in Fediz. The following plugins were available prior to Fediz 1.2.0:
The CXF plugin referred to here was not a full WS-Federation RP plugin as in the other modules. Instead, it consisted of a mechanism that allows the SSO (SAML) token retrieved as part of the WS-Federation process to be used by CXF client code, if the web application needed to obtain another token "on behalf of" the other token when making some subsequent web services call.
2) CXF RP plugin in Fediz 1.2.0
In Fediz 1.2.0, the CXF plugin mentioned above now contains a fully fledged WS-Federation RP implementation that can be used to secure a JAX-RS service, rather than using one of the container dependent plugins. Lets see how this works using a test-case:
- cxf-fediz-federation-sso: This project shows how to use the new CXF plugin of Apache Fediz 1.2.0 to authenticate and authorize clients of a JAX-RS service using WS-Federation.
It's as easy as this to secure your CXF JAX-RS service using WS-Federation! The remaining module in the test above deploys the IdP + STS from Fediz in Apache Tomcat. It then takes the "double-it" war above and also deployed it in Tomcat.
Finally, it uses Htmlunit to make an invocation on the service, and checks that access is granted to the service. Alternatively, you can comment the @Ignore annotation of the "testInBrowser" method, and copy the printed out URL into a browser to test the service directly (user credentials: "alice/ecila").
↧
